Selective tuple deformation

(v20 material)

Last month, in [1], I mentioned that I was working on more tuple
deforming speedups. This time it's "selective" tuple deforming. Let
me explain...

As of today, if we need, say, column 10 in a table and nothing else,
we deform columns 1-10. This is wasteful. Since c456e3911,
CompactAttribute.attcacheoff is always populated, so in many cases, we
know the byte offset where the required attribute's value is stored
within the tuple. When we know this, it makes sense to only deform the
attributes that we need for the query, rather than all attributes up
and including the one we need.

What we can't really do is just change the deforming code to always
selectively deform the tuple. There are some extra overheads to
tracking which columns we need, so for queries that require all
attributes from a table, we save nothing and only add additional
overhead for the attribute tracking. To get around this issue, I've
made it so we support both the existing method and this new selective
method, this has been added via a new operator named
EEOP_SCAN_SELECTSOME. The deformer that's used is selected based on
which attributes and how many attributes are being selected. In
theory, there should be some heuristic that we can come up with that
picks the best one for the job.

Let's say we have a table with 41 INT NOT NULL columns, and we only
want the 41st column. A query like SELECT col41 FROM t WHERE col41=0;
where t contains 1 million rows, none with col41=0, currently profiles
as:

66.72% postgres [.] tts_buffer_heap_getsomeattrs <---
9.73% postgres [.] ExecInterpExpr
3.87% postgres [.] heap_prepare_pagescan
2.96% postgres [.] ExecSeqScanWithQualProject
2.82% postgres [.] heapgettup_pagemode
1.84% postgres [.] ExecStoreBufferHeapTuple
1.45% postgres [.] hash_bytes
1.26% postgres [.] heap_getnextslot

Tuple deformation is taking over 66% of the query time.

If we swap to selective deforming, this goes to:

21.32% postgres [.] heapgettup_pagemode
12.71% postgres [.] ExecInterpExpr
11.31% postgres [.] heap_prepare_pagescan
8.76% postgres [.] ExecStoreBufferHeapTuple
8.54% postgres [.] heap_getnextslot
7.15% postgres [.] ExecSeqScanWithQualProject
6.83% postgres [.] tts_buffer_heap_selectattrs <---
2.45% postgres [.] hash_bytes
1.66% postgres [.] LWLockRelease
1.16% postgres [.] hash_search_with_hash_value
1.06% postgres [.] ReservePrivateRefCountEntry

The new deforming function is taking around 7% of the time here.

Today, I was experimenting with the heuristic that selects the
deformer. For now, I've made it so it checks the maximum attribute
needed, and if we need more than half of the attributes before that
one, then deform everything up to the max. Otherwise, only deform the
required attributes. I also added a GUC to override the heuristic of
which deformer is selected; debug_tuple_deform supports "incremental",
"selective", and "auto". "incremental" is what I named the existing
method. The GUC is only for testing. I don't anticipate keeping it.

I tried all 3 of those GUC settings on the 41 column table and
effectively did: SELECT col41 FROM t WHERE col41=0; and then
progressively added the columns one by one in descending order. The
"auto" setting will switch methods when there are 20 columns in the

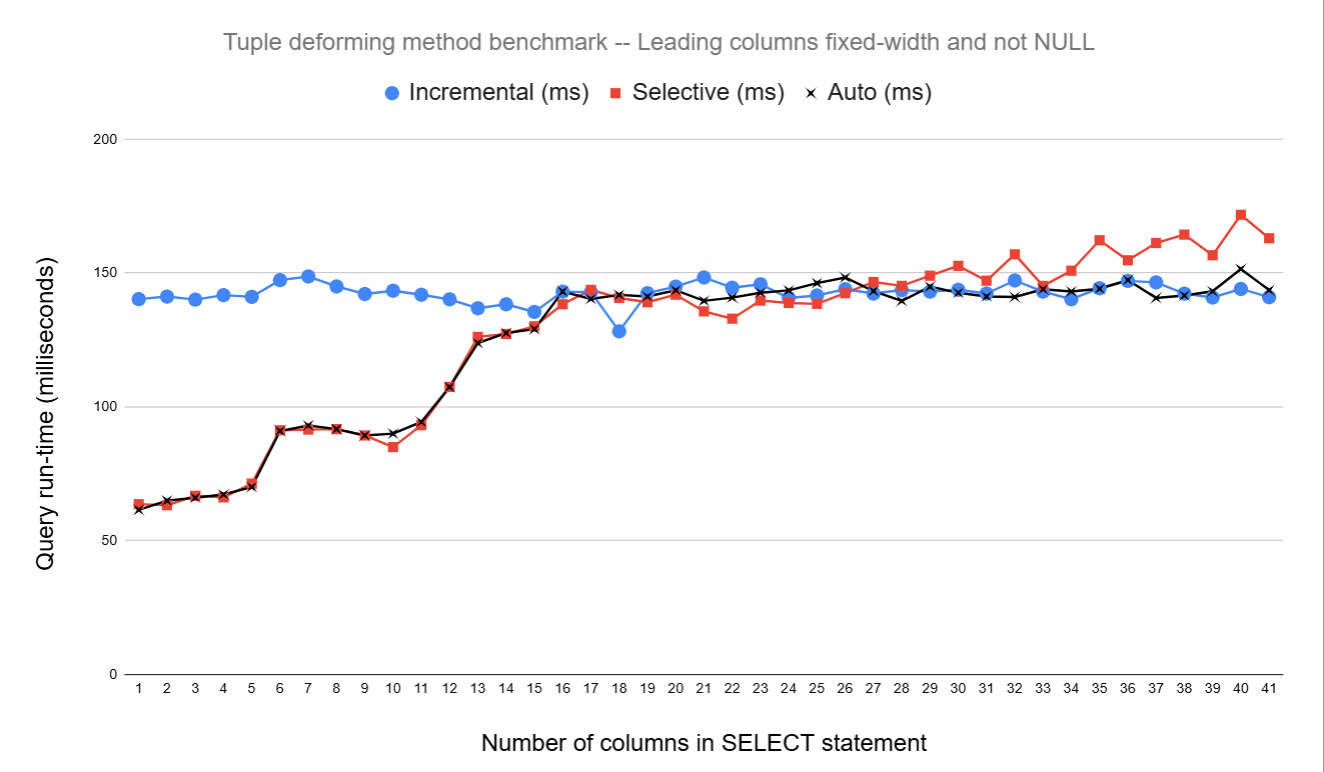

select list. See graph1.png for the performance results. This shows
that when only a few columns are needed, the query time improves. With
1 column selected, patched 128% faster than master. Looking at the red
line, you can see that as more columns are selected, the increase is
less and less, and when all 41 columns are needed, selective deforming
causes a performance regression. The black line shows the "auto"
setting, which follows the red line (with noise) from 1-20, then the
blue line from 21-41, from where the incremental method is used.

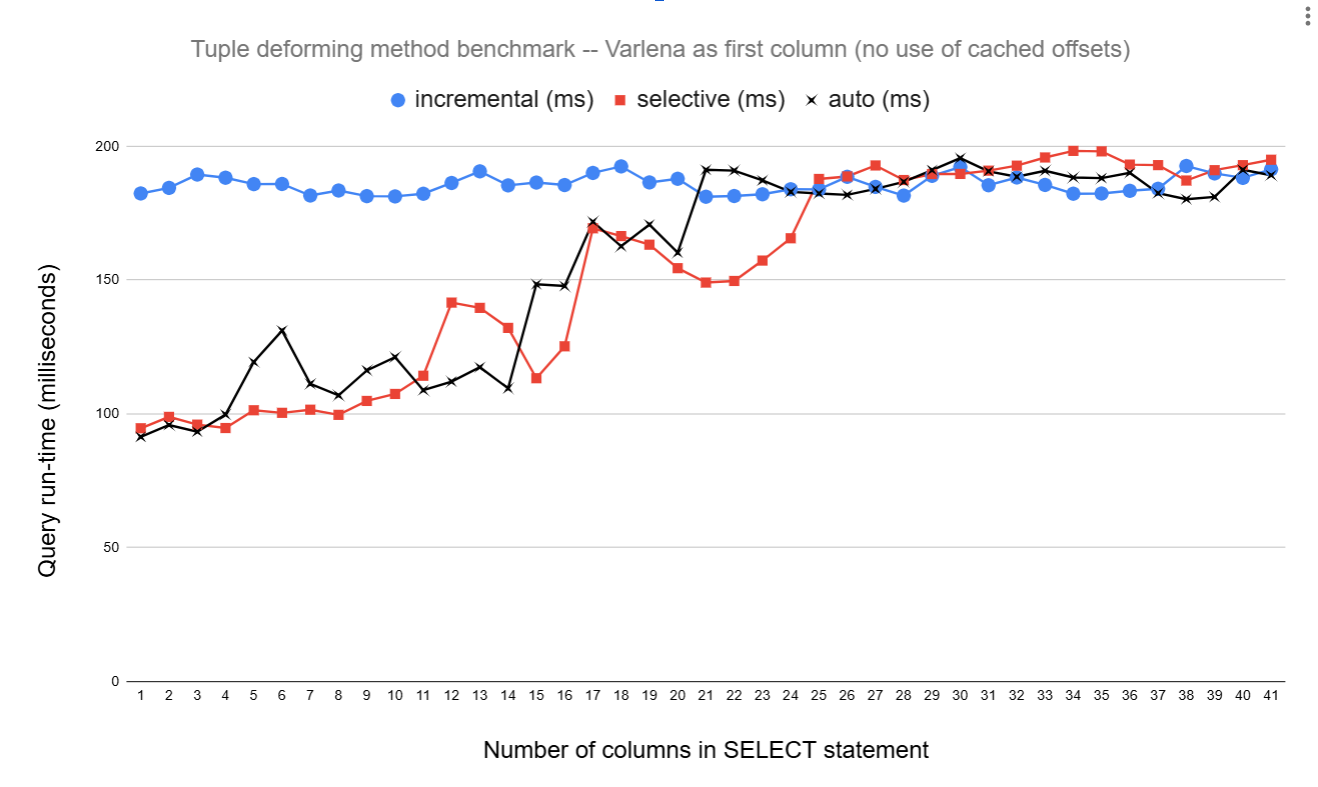

graph2.png shows the performance of running the same queries as
graph1, but the table has a varlena column as the first column. This
means there's no use of cached offsets, and the tuple is always walked
to find the offset for the first required column. This shows that the
speedup for the 1 column case isn't as good, and the performance
increase is just 99% faster than master. The gains still exist through
not having to store Datums in tts_values that we don't need.

The patch is tagged with "WIP", so not finished yet. There is no JIT
support. I expect if you JIT any expression, bad things will happen.
I've also only added support for Seq Scan. Other scan node types could
be supported.

The attached script can be run with "./select_deform_bench.sh setup"
to create the table, then "./select_deform_bench.sh run" to run the
test. Currently, varlena_first is set to 0. Set that to 1 to have a
text column added as the first column.

I'll happily take comments and further ideas here, but I won't be
working on it with much priority until June.

WIP patch is attached.

David
