Re: index prefetching

Hi,
I decided to test this PR.

I didn't take much time to go through the thread or the code in detail yet.
But I have my first benchmark results and I would like to share.

EXPERIMENT

I tested [CF 4351] v10 - Index Prefetching

I created a table with 100k rows and
Sequential is, as guessed, 1,2,3,4 (indexed)
Periodic is a quasi random (i * jump) % num_rows, where gcd(jump, num_rows)
= 1, guarantee that there are no repeated entries (indexed)
Random is a `row_number() over (order by random())` (indexed)
The payload is a fixed 200 character long string, just to make it more
realistic.

For the tests, I disable sorting, sequential scans, index only scans and
bitmap scans.
Since buffer cache always has a significant impact on the query
performance, I shuffled the tests, and tried to adjust for the number of
buffer hit/read, but later I found that the best way to control that was to
use a table small enough to be entirely held in cache, and evict the
buffers.

* off: buffers are kept in cache
* pg: buffers evicted from postgres pg_buffercache_evict from
pg_buffercache extension.
* os: supported only in python, I separated the buffer eviction in
purge_cache as it requires sudo (tested only in MacOS).

I varied
* max_parallel_workers_per_gather (although I guess it wasn't exploited),
* enable_index_prefetch
* the column used as sorting key and, as a result, the index used.
* and buffer eviction mode.

Running from python with psycopg

SUMMARY

I could not see the expected positive impact and when using the python
script and buffers evicted prefetch had a detrimental impact.

APPENDIX

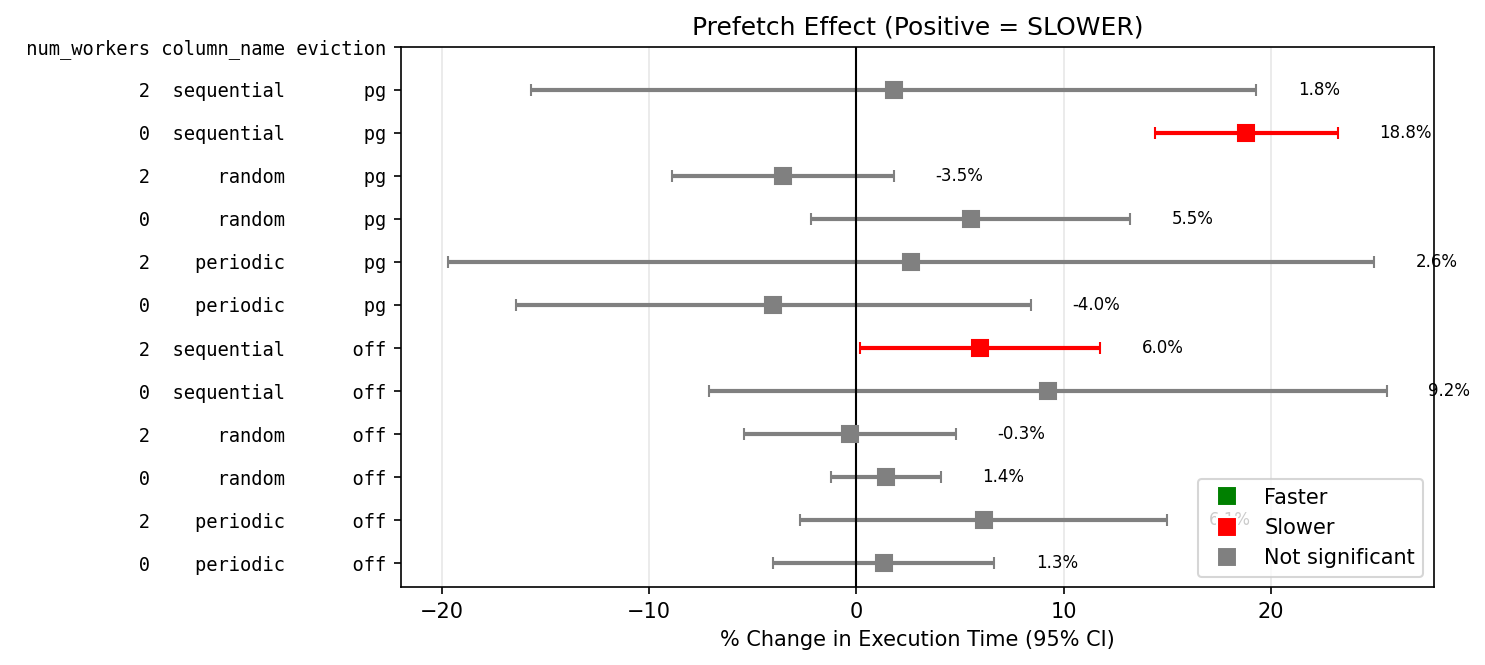

psql run
column_name io_method num_workers evict n off_ms on_ms pct_change
ci_low ci_high
periodic worker 0 off 10 172.4 182.8 6.024162
-3.7 15.7
periodic worker 0 pg 10 222.7 214.8 -3.539448
-13.0 5.9
periodic worker 2 off 10 173.5 172.7 -0.442660
-1.6 0.7
periodic worker 2 pg 10 226.3 213.2 -5.795049
-16.9 5.3
random worker 0 off 10 173.3 174.1 0.476657
-1.0 2.0
random worker 0 pg 10 216.6 218.1 0.704020
-2.8 4.3
random worker 2 off 10 182.7 175.3 -4.031139
-15.6 7.5
random worker 2 pg 10 217.2 213.7 -1.586813
-4.4 1.2
sequential worker 0 off 10 131.1 130.4 -0.568573
-3.4 2.3
sequential worker 0 pg 10 150.7 188.2 24.923924
22.2 27.6
sequential worker 2 off 10 129.7 130.2 0.421814
-1.0 1.9
sequential worker 2 pg 10 151.0 184.1 21.925935
19.5 24.3

psycopg run
column_name io_method num_workers evict n off_ms on_ms pct_change
ci_low ci_high
periodic worker 0 off 10 186.7 193.7 3.701950
-7.3 14.7
periodic worker 0 os 10 207.0 535.2 158.507266
153.7 163.3
periodic worker 0 pg 10 201.2 537.0 166.923995
161.5 172.3
periodic worker 2 off 10 181.2 189.0 4.303359
-0.2 8.8
periodic worker 2 os 10 221.7 548.2 147.322934
131.8 162.9
periodic worker 2 pg 10 203.1 533.5 162.688738
160.4 165.0
random worker 0 off 10 194.6 186.8 -3.986974
-11.5 3.5
random worker 0 os 10 211.4 338.2 59.979252
52.9 67.1
random worker 0 pg 10 212.3 336.8 58.686711
50.2 67.1
random worker 2 off 10 183.3 187.7 2.364585
0.4 4.4
random worker 2 os 10 222.5 341.9 53.659704
42.1 65.2
random worker 2 pg 10 204.1 333.3 63.348746
62.3 64.4
sequential worker 0 off 10 129.9 129.5 -0.260586
-1.9 1.3
sequential worker 0 os 10 150.9 182.4 20.909424
16.6 25.2
sequential worker 0 pg 10 150.3 185.0 23.132583
19.2 27.1
sequential worker 2 off 10 129.9 132.9 2.323179
-4.3 9.0
sequential worker 2 os 10 153.8 189.8 23.402255
13.9 32.9
sequential worker 2 pg 10 151.1 185.9 22.997500
20.1 25.9

Regards,
Alexandre

On Mon, Feb 9, 2026 at 10:45 PM Peter Geoghegan <pg(at)bowt(dot)ie> wrote:

> On Fri, Jan 30, 2026 at 7:18 PM Peter Geoghegan <pg(at)bowt(dot)ie> wrote:
> > Attached is v9.
>
> Attached is v10. There are 2 major areas of improvement in this latest
> revision:
>
> 1. We have enhanced the read stream callback (heapam_getnext_stream,
> which is added by
> v10-0005-Add-prefetching-to-index-scans-using-batch-inter.patch),
> making it yield at key intervals. When we yield, we temporarily
> suspend prefetching -- but only for long enough to give the scan the
> opportunity to return one more matching tuple (don't confuse yielding
> with pausing; we do both, but the goals are rather different in each
> case).
>
> Yielding like this keeps the scan responsive during prefetching: the
> scan should never go too long without returning at least one tuple
> (except when that just isn't possible at all). Testing has shown that
> keeping the scan responsive in this sense is particularly important
> during scans that appear in "ORDER BY ... LIMIT N" queries, as well as
> during scans that feed into certain merge joins. IOW, it is
> particularly important that we "keep the scan responsive" whenever it
> has the potential to allow the scan to shut down before it has
> performed work that turns out to be unnecessary (though it also seems
> to have some benefits even when that isn't the case).
>
> There is a complex trade-off here: we want to yield when we expect
> some benefit from doing so. But we don't want to yield when doing so
> risks compromising the read stream's ability to maintain an adequate
> prefetch distance. There are comments in heapam_getnext_stream that
> describe the theory in more detail. There are heuristics that were
> derived using adversarial benchmarking/stress-testing. I'm sure that
> they need more work, but this does seem like roughly the right idea.
> Note that we now test whether the scan's read stream is using its
> fast-path mode (read stream uses this when the scan reads heap pages
> that are all cached).
>
> 2. A new patch
> (v10-0007-Limit-get_actual_variable_range-to-scan-one-inde.patch)
> compensates for the fact that the main prefetching commit removes
> get_actual_variable_range's VISITED_PAGES_LIMIT mechanism. Since
> VISITED_PAGES_LIMIT cannot easily be ported over to the new table AM
> interface selfuncs.c now uses.
>
> I described the problem that we need to address when I posted v9:
>
> > selfuncs.c problem
> > ------------------
> >
> > Also worth noting that we recently found a problem with selfuncs.c:
> > the VISITED_PAGES_LIMIT stuff in selfuncs.c is broken right now. v9
> > tears that code out, pending adding back a real fix (earlier versions
> > of the patch had VISITED_PAGES_LIMIT, but it didn't work).
> >
> > The underlying problem is that the existing VISITED_PAGES_LIMIT design
> > is incompatible with our new table_index_getnext_slot interface. The
> > new interface doesn't stop scanning until it is able to at least
> > return 1 tuple. But VISITED_PAGES_LIMIT was invented precisely because
> > get_actual_variable_endpoint's index scans took far too long, even
> > though they're only ever required to locate 1 tuple. So that just
> > won't work.
> >
> > We'll need to invent some kind of API that directly acknowledges the
> > needs of the selfuncs.c caller, and others like it. Doing it in an
> > ad-hoc way just doesn't seem possible anymore. That will have to wait
> > for the next revision, though (or the one after that).
>
> The new patch deals with the problem in a completely different way,
> and at a completely different layer: it adds a new
> IndexScanDescData.xs_read_extremal_only field, set only by
> get_actual_variable_range. When nbtree sees that the field has been
> set, it gives up after scanning only one leaf page (the page that
> contains extremal values that are of interest to
> get_actual_variable_range). Note that we completely stop caring about
> heap page fetches with this new approach.
>
> There are good reasons to believe that the new
> IndexScanDescData.xs_read_extremal_only approach will solve existing
> problems with VISITED_PAGES_LIMIT. Recent benchmarking from Mark
> Callaghan [1] (which I've independently recreated with my own minimal
> test suite) shows that VISITED_PAGES_LIMIT becomes completely
> ineffective, once we reach a tipping point where many index tuples at
> one end of the index all have their LP_DEAD bit set.
>
> I'm going to start a new thread to discuss the issues in this area
> later today. I'm aiming to fix an existing, independent issue in this
> new patch, so it makes sense to discuss it on a completely separate
> thread.
>
> [1]
> https://smalldatum.blogspot.com/2026/01/cpu-bound-insert-benchmark-vs-postgres.html
> --
> Peter Geoghegan
>
